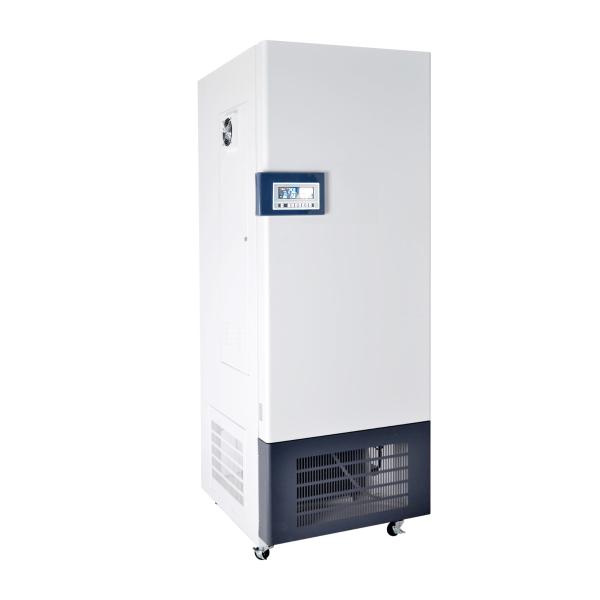

Intelligent Artificial Climate Chamber
Scope of Application:
This product is a dedicated constant temperature and humidity experiment equipment with illumination, which is suitable for plant and tissue culture, plant germination, culture of seeding, microbes incubation, insects and small animal feeding, water body BOD test, aging and service time test of medicine, wood and building material, etc..
Structure Characteristics:
- Outer Shell Material: Cold-rolled steel sheet surface spray
Inner Material: SUS304 Stainless steel
- Inner fans to make circular air convection for an even environment
- Microprocessor PID temperature control, accurate and reliable
Parameters auto saving system and automatic start after power interruption
- Inner round cornered design, convenient to clean
- Shelves adjusted easily and flexiblely
- Castors for easy movement
- HQH Series:Cubigel refrigeration compressor, effective and energy saving; Freon-free environment friendly refrigerator
- HQH-H Series: SECOP refrigeration compressor, effective and energy saving; Freon-free environment friendly refrigerator
- built-in water tank and Automatic water supply interface
- Automatic shut down the humidifier and heater when there is no water
- Optional device:
Independent external temperature protection device
Independent external temperature protection alarm module by SMS( not inculding the data flow card) which can be inquired by mobile APP
RS485 communication serial port
RS485 to USB Transfer interface
Micro thermal printer or Micro pinhole printer
Model specification:
| Model |
HQH-250
HQH-H250
|
HQH-300
HQH-H300
|
HQH-400
HQH-H400
|
HQH-500
HQH-H500
|
| Temperature Control Range |
Under illumination: 10℃-50℃ Without illumination: 5℃-50℃ |
| Humidity Control Range |
Under illumination: 50%-80%RH ( 18℃-45℃)
Without illumination: 50%-90%RH(15℃-45℃)
|
| Temperature Uniformity |
±2℃ |
| Temperature Fluctuation |
±0.5℃ |
| Temperature Display Accuracy |
0.1℃/1%RH |
| Temperature Control Accuracy |
±0.1℃/±1%RH |
| Humidity Mode |
Built-in heating and humidification |
| Illuminance |
HQH: Two-sided illumination 6000LX
HQH-H: Three-sided illumination 6000LX
LED Lamp Color temperature:6500K
|
| Adjustment grading of Illuminance |
HQH: Adjustable in 6 levels
HQH-H: Adjustable in 5 levels
|
| Inner Cyclic Mode |
Breeze stirring method |
| Alarm Type |
Over temperature alarm
Temperature probe damage alarm
Under temperature alarm
Humidity probe damage alarm
|
| Temperature Controller |
HQH: LED display and P.I.D. controller with 30 process
HQH-H: LCD display and P.I.D. controller with 24 process
|
|
Work Room Dimension
WxDxH (cm)
|
47*46*118 |
49*47.5*128 |
56*60*120 |
66*65*120 |
| Capacity(L) |
255 |
298 |
403 |
515 |
|
Outline Dimension
WxDxH (cm)
|
66.5*76.5*182 |
68.5*78*192 |
75.5*90.5*184 |
85.5*95.5*184 |
| Shelves |
3 |
3 |
3 |
3 |
| Rated Power (W) |
2400 |
2900 |
3400 |
3900 |
| Power |
1Φ 220V 50Hz |
